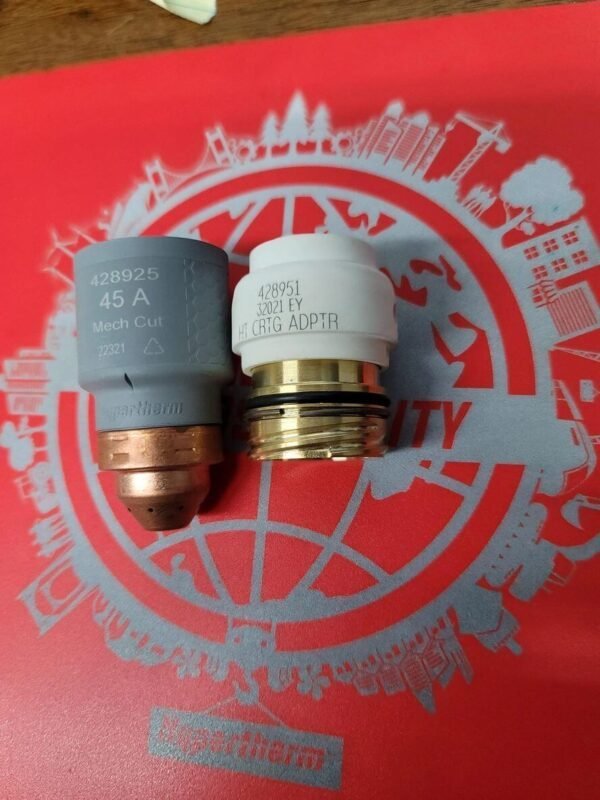

Hypertherm 428951 Sync Cartridge Adapter for Duramax Hand or Mechanized Torches

Main Purpose:

Upgrade adapter that converts older Duramax torches to accept the new SmartSYNC cartridge consumable platform

Key Function:

1. Allows Duramax® and Duramax® Lock torches to use SmartSYNC single-piece cartridge consumables
2. Replaces traditional 5-piece consumable stack-up with modern 1/4-turn cartridge system
3. Simplifies consumable ordering, inventory, and installation

How It Works:

1. Adapter screws onto Duramax torch in place of retaining cap
2. SmartSYNC cartridge then twists onto adapter (1/4 turn installation)
3. Adds 17.5 mm (0.69 inches) to consumable length from torch head
4. Lifespan similar to a retaining cap (multiple cartridge changes)

⚙️ Compatibility:

Compatible Systems:

1. Powermax 45 XP - Duramax® Lock hand, mechanized, and robotic torches
2. Powermax 65 - Duramax hand, mechanized, and robotic torches
3. Powermax 85 - Duramax hand, mechanized, and robotic torches
4. Powermax 105 - Duramax hand, mechanized, and robotic torches

NOT Compatible With:

1. ❌ Duramax retrofit torches for Powermax1000/1250/1650
2. ❌ Duramax Hyamp™ standard or long style torches
3. ❌ NOT recommended for Duramax Retrofit torches

🔧 Features & Benefits:

Simplifies Consumable Management:

1. Single-piece SmartSYNC cartridges replace 5 separate parts (electrode, nozzle, swirl ring, shield, retaining cap)
2. Color-coded cartridges eliminate confusion
3. Twist-on installation (1/4 turn) - no assembly required
4. Reduces consumable inventory complexity

Streamlines Operations:

1. Faster consumable changes (seconds vs. minutes)
2. Less downtime
3. Reduced training time for operators
4. Fewer mistakes during consumable replacement

Important Notes:

Data Transfer Limitation: When using cartridges with this adapter on non-SYNC systems:

1. ❌ No data transfer from cartridge to power source
2. ❌ No automated process setup
3. ❌ No end-of-life detection
4. ❌ No cartridge usage tracking

These features ONLY work with:

1. Powermax SYNC™ systems
2. SmartSYNC™ torches (no adapter needed)

With adapter on Duramax torches:

1. Still get simplified consumable installation
2. Still get single-piece cartridge convenience
3. Still get inventory management benefits
4. Just no smart/data features

📐 Technical Specifications:

Part Number: 428951Product Type: Torch AdapterFunction: Enables SmartSYNC cartridge use on Duramax torchesCompatible Torches: Duramax, Duramax Lock (hand, mechanized, robotic)Compatible Systems: Powermax 45 XP, 65, 85, 105Added Length: 17.5 mm (0.69 inches) from torch headLifespan: Similar to retaining cap (multiple uses)Installation: Screw-on (replaces retaining cap)Cartridge Attachment: 1/4 turn twist-onData Transfer: No (adapter only - requires SYNC system for data)
